Product name: Molecular Sieve Filling Machine
Product Code: FGJ02
Detailed description:

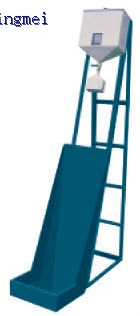

The machine is a molecular sieve desiccant filling into the slot aluminum type of special equipment hollow glass aluminum spacer bars within easy machine operation, that artificial hand aluminum spacer is inserted into the appropriate force filling gas, pause a few seconds to pull out, It is the production of hollow glass aluminum trough indispensable equipment.
1. The heating device can fully guarantee the desiccant adsorption rate after filling;
2. The vibration device in favor of desiccant filling;
3. with more than expected recovery, reduce waste desiccant and cost savings.
The main technical parameters:
Power (Power supply): 380V 50Hz
Total Power (Total power): 1Kw
Pressure range (Air-pressure Range): 0.5 ~ 0.8MPa
The maximum cross-section aluminum gutter (width × thickness): 16mm × 6mm
The maximum length of aluminum gutter: 1500mm
Pressure (Compression Resistance): 1.2MPa
Vibration frequency (Vibration Frequency): 0 ~ 15Hz
Ambient temperature (Circumstance Temperature): 5 ~ 60 °
Dimension (Dimension): 2490 × 400 × 2200mm
Weight (Weight): 120kg
