Single Head Auto Screw Machine

SGJ1-100

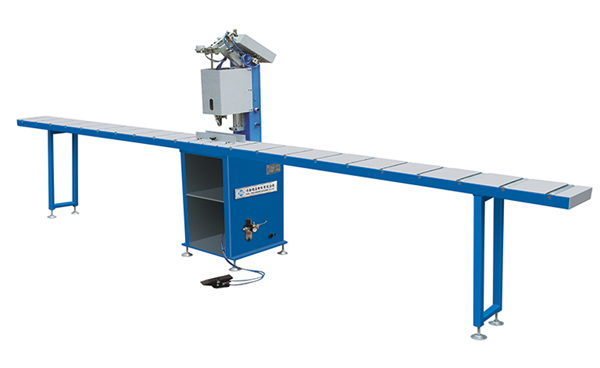

Single Head Auto Screw Machine
Description

1). Automatic screw fastening machine is suitable for plastic profile and strengthening screws between steel lining.
2). Screw adaptable, as long as it is in line with the standard screw, not limited to the manufacturer.
3). Screw fastening depth adjustable, the replacement of the profile is generally no need to adjust the distance between the fastening screws can be very convenient to adjust.
4) the nail feeding, clamping and screw nail are automatically completed, which is convenient and efficient, and can save labor.
5). Screw easy disassembly and assembly, screw the screw only a few seconds to replace.

Brand Name

MAG

Model

SGJ1-100

Power Supply

380V 50Hz or customers specifications

Input Power

0.3kw

Air Pressure

0.6-0.8MPa

Profile Width

0-120mm

Profile Height

30-100mm

Screw Diameter

3- 5mm

Screw Length

13-19 mm

Steel lining thickness

1.0-2.0mm

Screw Diameter(cross head)

13-19 mm

Auxiliary Support Bench Length

1000mm*2

Over Dimension

500*750*1700mm
