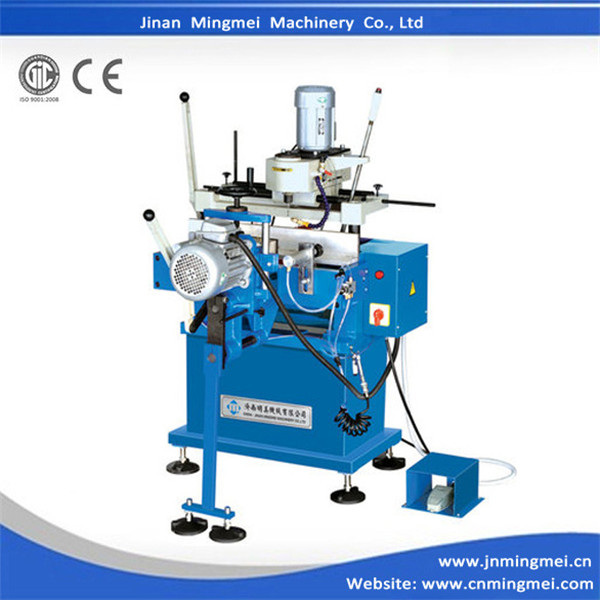

Copy-routing Drilling Machine

LZ3F-290*100

Description

Main features

1). Used for processing various kinds of holes of aluminum doors & windows, such as water slot, pulley hole, lock hole and groove of PVC and Aluminum profile.
2) Horizontal milling head and vertical three-hole drill can process three holes on the lock and lock-position hole at one time.
3) Special A-alloy milling cutter with long using life ensures high quality processing.

Technical Parameters

Brand Name	Mingmei
Model	LZ3F-290*100
Power Supply	380V 50Hz
Input Power	2.6KW
Over all dimension	100011501600mm
Weight	280Kg
Air Pressure	0.5-0.8MPa
Processing hole size error	±0.2mm
Processing deviation from straightness	±0.1mm
Diameter of the three-hole drilling head	Φ10, Φ12，Φ10
Centers distance of three-hole drilling head	21.5*21.5
Copy routing range	290*100
