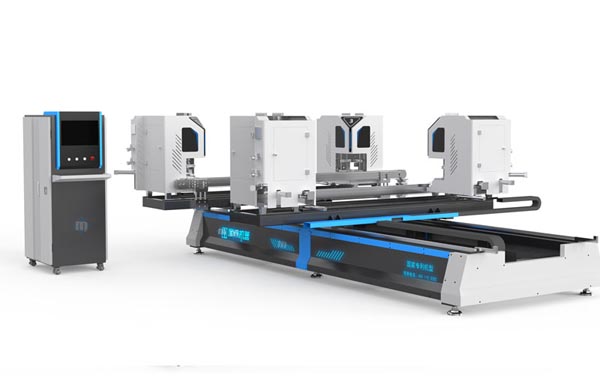

SHRW-CNC-120x1800x3000

Main features

1). This machine is for making pvc window and doors with high efficiency. It can weld and clean a rectangular window frame at one time, and then transfer the finished window frame to the transmission worktable. Its efficiency is much higher than other welding machines.
2). The classic mechanical design of the key parts of the machine allows the welding machine to have a smoother and more stable mechanical hardware function. Flatness is guaranteed; tool life is greatly improved.
3). The extruding knives of the whole machine are made of imported high-precision alloy materials. After quenching, the precision machining is completed. The knives are standardized, and the front and rear knives can be exchanged. Production per square meter. The weld effect of the finished window cleaned by the precision broach is far superior to the old-fashioned corner cleaning process of the CNC corner cleaning machine. Form a standard 2mm clearance gap, the clearance depth is 0.3mm, and the welding seam is very beautiful and smooth. This machine can also precisely weld in standard welding pattern. Then pass is the best treatment plan for the surface welding seam of doors and windows.
4). The machine is exclusively designed with a precise universal auxiliary backing plate, so that the casement window, sliding window have the best welding size and plane effect, and the replacement and adjustment are extremely convenient, which greatly improves the production efficiency and reduced operator-assisted machining time.
5). The moving parts of the machine all use high-precision and precise linear square guide rails, which ensures the stability and reliability of the equipment and avoids a series of problems such as excessive clearance between the round guide rail and the slider.
6). Equipped with color touch screen and Siemens PLC, servo motor, automatically complete the welding, transmission and other work of the window, easy to operate, stable and reliable.
7). The X-axis adopts high-precision grinding rack transmission, and the Y-axis adopts precision rack-and-pinion transmission, which has fast transmission speed and high positioning accuracy, providing precision support and guarantee for high-quality doors and windows.
8). The machine base is welded w ith thick-walled rectangular steel pipes, and after aging treatment, it has strong bearing capacity and is not easy to deform.
9). Professional-grade industrial appearance design realizes the perfect combination of practical equipment and beautiful appearance, bring customers a high-end experience of visual sense.

Technical Parameters
