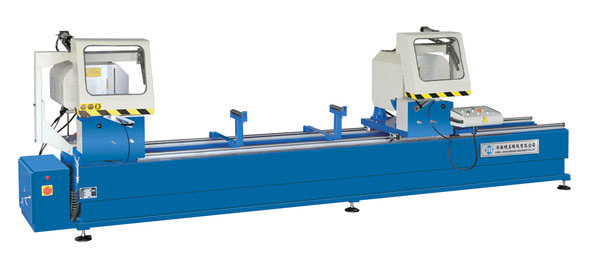

It is used for cutting aluminum and plastic profiles at the angle of -45°, 90° or 45°.
The lathe carriage is moved by a precision linear bearing pair to guarantee the repetitive positioning of high precision.
The movable heads are pulled by a stepper motor, and controlled by a CNC system with LED touch screen. This machine can be used for both cutting or sawing corner braces.
It is of solid structure, high rigidity, safety and reliability, high machining precision, high working efficiency, simple and convenient operation.

Technical Parameters:
Input Power 2*1.5kw
Power Supply 380V/50Hz
Working Pressure 0.5-0.8MPa
Rpm 2800
Size of Saw Blade 450*30
Cutting Angle -45°-90°-45°
Cutting Range 580-3700mm
Cutting Width * Height 120*160
Dimension 1600*1300*1500
Weight 980kg or so
