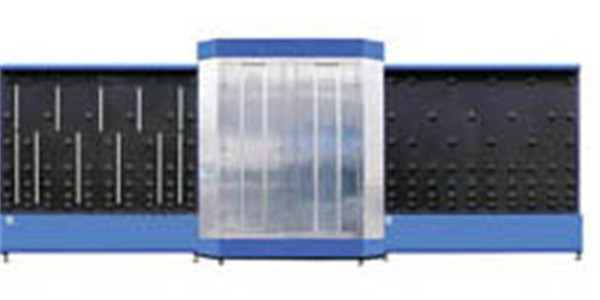

BX1600V Vertical Glass Washing and Drying Machine
BX1600V
BX1600V
Product description
Main features 1). Vertical glass washing and drying machine is cleaning for flat glass with 2 pairs of brushes and air knife to drying.
2). Automatic clean and dry flat glass with the thickness of 3-19mm.
3). Using 2 pairs of brushes to wash and air knives which supply strong wind and dry the glass adopting vertical transmission structure.
4). Processing speed can be adjusted by the step less regulator; it is the necessary device of the insulating glass product line.
Technical Parameters
Brand name Mingmei
Model BX1600V
Power voltage 380V 50Hz
Max glass size 1600*2000(mm)
Min glass size 400*400(mm)
Transmission speed 1-5m/min
Thickness of washing glass 3-19mm
Power rate 8.43Kw
Overall dimmension 6100*2100*2650(mm)
Weight 1500kg
