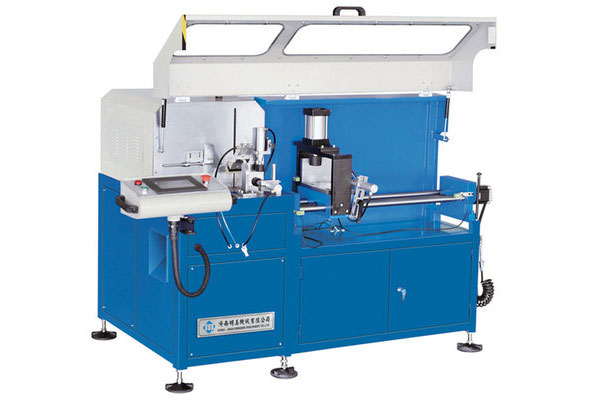

This machine tool is mainly used for the preparation and cutting of corner brace profiles of aluminum doors and windows.
It is mainly used to prepare and cut the corner braces of aluminum windows and doors.
A 6-meter corner profile can be cut continuously just at one clamp of the material.
It is equipped with imported control system with human-computer interface, offering high degree of automation.
The application of carbide blades renders high cutting speed, high productivity, and high machining precision.
The feeding motion pair is equipped with linear bears, rendering low motion resistance and high precision.
The feeding structure is equipped with an automatic feeding system, which is solid, reliable and efficient.
Pneumatic system control is used for the clamping and cutting motion, which is easy to operate, safe, reliable and efficient.

Parameters:
Input Power 3.2kw
Power Supply 380V/50Hz
Working Pressure 0.5-0.8MPa
Rpm 2800
Size of Saw Blade 500*30
Profile length 5-700mm
Cutting Width * Height 135*300
Dimension 6300*1600*1400
Weight 800kg or so
