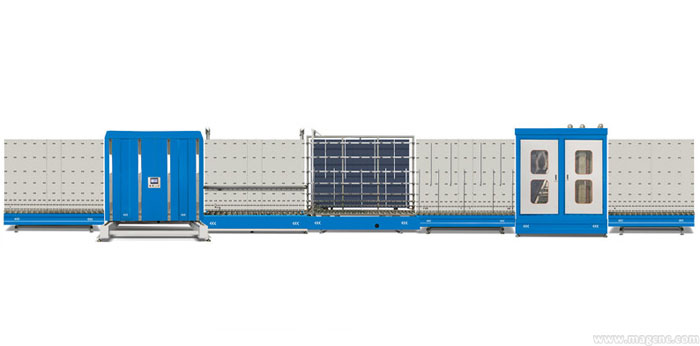

Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Production Line
LBW2000PC
LBW2000PC
Product description
1).Automatically Distinguish the side of coated
glass and low-E glass.
2).PLC control system with touch screen
operation.
3).Machine work and fault dynamic display.
4).Standard double layer IG and three layers IG.
5).Frequency control designed for glass
transmission.
6).Panel press openable, easy for maintainning.
7).With function of IG online gas filling.
Technical Parameters
|
LBW2000PC |
LBW2200PC |
LBW2500PC |
|
|
Power voltage(KW) |
34 |
37 |
37.5 |
|
Max. glass size(mm) |
1950*2580 |
2200*3000 |
2500*3500 |
|
Low-E |
√ |
√ |
√ |
|
Triple Glazing |
√ |
√ |
√ |
|
Stepped Glass |
Optional |
Optional |
Optional |
|
Function Section |
7 |
7 |
7 |
|
Overturning Platform |
Optional |
Optional |
Optional |
|
Dimension (mm) |
18800*1600*3050 |
21300*1800*3300 |
23100*1800*3350 |
