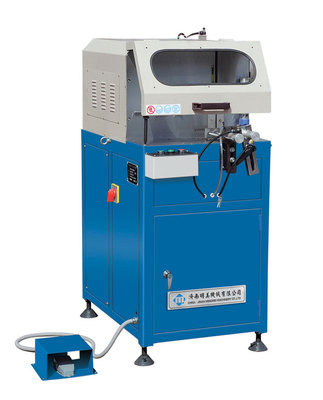

This machine of reliable performance and advanced technology, is easy to operate and maintain
It is mainly used to prepare and cut the corner braces of aluminum windows and doors.
A 6-meter corner profile can be cut continuously just at one clamp of the material.
It is equipped with imported control system with human-computer interface, offering high degree of automation.
The application of carbide blades renders high cutting speed, high productivity, and high machining precision.
The feeding motion pair is equipped with linear bears, rendering low motion resistance and high precision.
The feeding structure is equipped with an automatic feeding system, which is solid, reliable and efficient.
Pneumatic system control is used for the clamping and cutting motion, which is easy to operate, safe, reliable and efficient.


Parameters:
Input Power 2.2kw
Power Supply 380V/50Hz
Working Pressure 0.5-0.8MPa
Rpm 2800
Size of Saw Blade 500*30
Cutting Width * Height 120*200
Dimension 1200*900*1480
Weight 300kg or so
