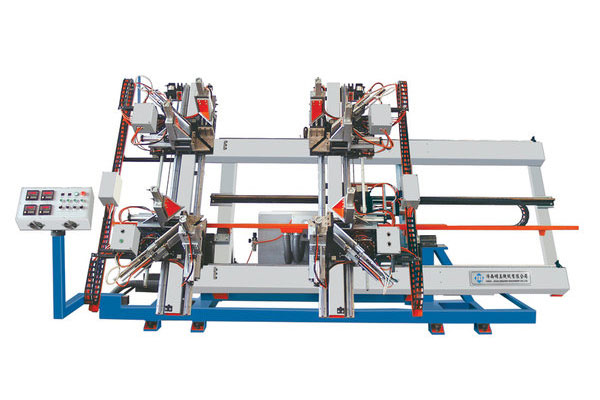

Weld on an automatic basis the rectangular door/window frame or leaf made of plastics.
It increases the effective welding height and adopts the design of enhancing the overall rigidity relatively, rendering high productivity.
Linear bearing pair with high precision and stable processing property.
The specific positioning structure and clamping device guarantee the stability of welding precision in dimension, shape and position.
It adopts the three-side wrapping process, together with the profile positioning and clamping functions, effectively guaranteeing the precision in dimension, as well as precision in shape and position, such as flatness, etc. of the finished parts.

Parameters:
Input Power 6.5KW
Power Supply 380V/50Hz
Working Pressure 0.5~0.8MPa
Welding Height Range 20~120mm
Welding Width Range 120mm
Welding Range 400*400mm 1800*3000mm
Dimensions 5500*1700*3000mm
Weight 3200kg or so
