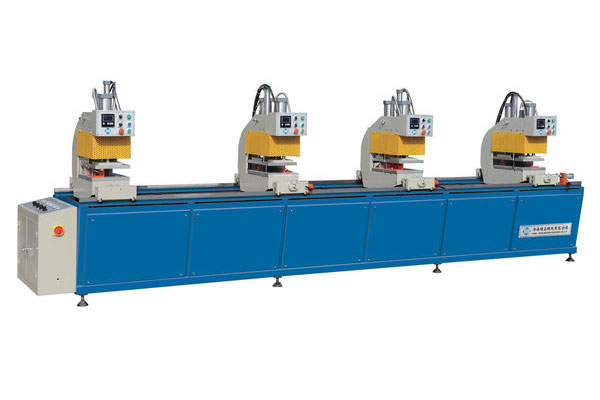

It is capable of welding the combination of multi-shapes, as well as arbitrary angles within a certain range.
The four heads can either work separately or jointly, rendering flexible combination and high efficiency.
The right head can execute arbitrary angle welding within the range of 30°-180°.

Parameters:
Input Power 4.5KW
Power Supply 220V/50Hz
Working Pressure 0.6~0.8MPa
Gas Consumption 200L/min
Welding Height Range 20~120mm
Welding Range 400~4500mm
Dimensions 5300*110*1700mm
Weight 2000kg or so
