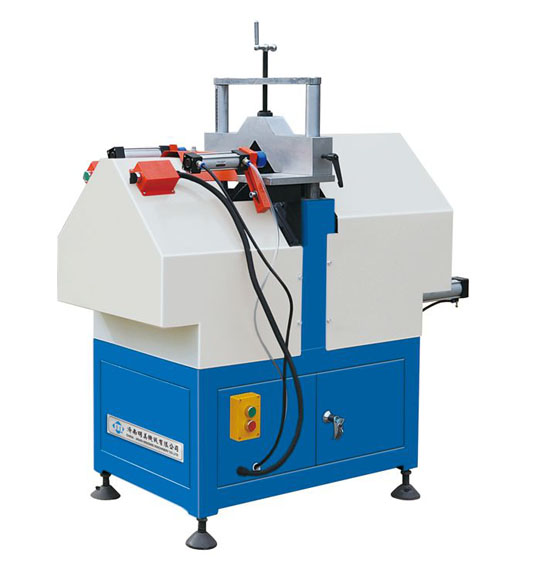

V-cutting saw
SVJ-60

V-cutting

Product description
For cutting 90°V-shape groove for aluminum-plastic profiles.
Automatic centralized positioning device makes the operation easier.
Pneumatic drive facilitates the operation.

Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Positioning Length 300~1600mm
Grooving Depth 20~60mm
Dimensions 1900*700*1350
Weight 210kg
