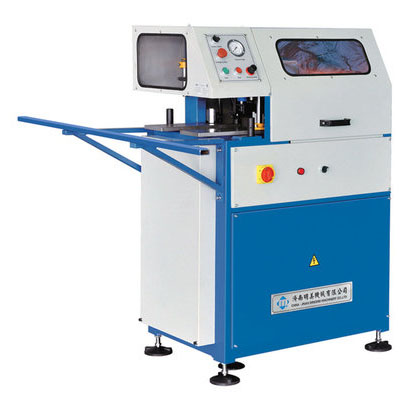

It is used to clean the upper and lower plane welds and the outer exterior angle weld after the plastic profile is welded to form a 90° angle.
The exterior angle is cleaned with a profile cutter featuring high productivity, etc.
The change of profiles calls for the replacement of profile cutter.

Parameters:
Input Power 1.5kw
Power Supply 380V/50Hz
Working Pressure 0.5~0.7MPa
Motor RPM 2800
Gas Consumption 100L/min
Profile Width 20~120mm
Profile Height 20~120mm
Gutter Width 3mm
Gutter Depth 0.3mm
Dimensions 1650*1300*1450
Weight 270kg
