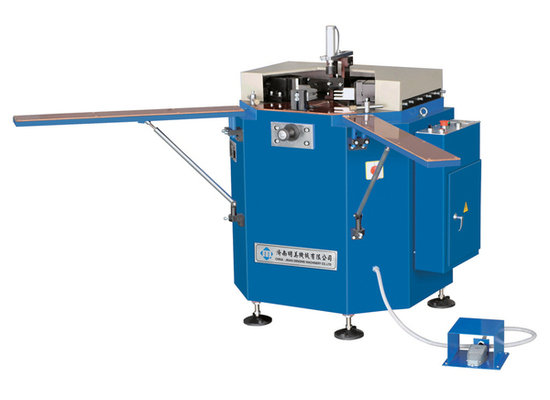

Power of the crimping tools are controlled by a hydraulic system to make the operation stable and reliable.
The right and left punches are driven by the mechanical linkage of a hydraulic cylinder, realizing the synchronized rigidity feeding of both punches and avoiding useless deforming during the crimping, so as to make more steady junction of window corners.
This machine is easy to operate, machining joint seams with small tolerance for doors and windows with better effect.
Screw joints are used to adjust the distance between the front and rear crimping tools, making the tool alignment much easier.

Parameters:
Input Power 1.5kw
Power Supply 380V/50Hz
Working Pressure 0.6~0.8MPa
Rated Pressure 15MPa
Oil Tank Capacity 20L
Applicable Profile Width 90mm
Cylinder Stroke 85mm
Adjustment Range of Main Positioning Block 54mm
Dimensions 1000*1200*1200
Weight 300Kg or so
