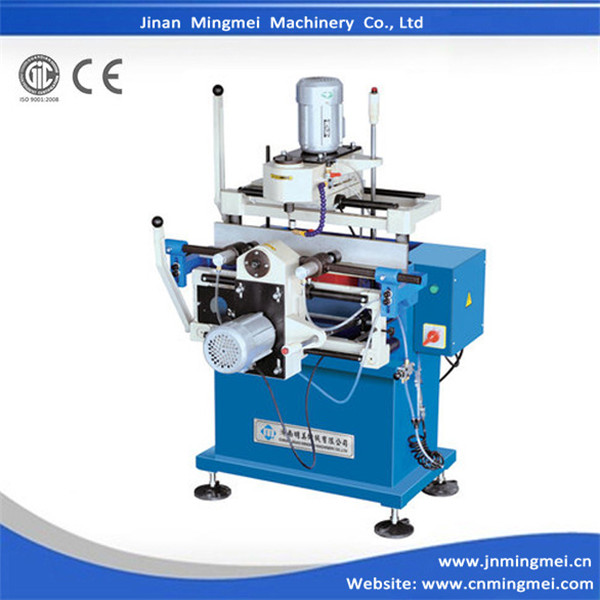

Double-axle Copy-routing Drilling Machine
LXF2-290*100

Double-axle

Product description

1). Used for processing all kinds of holes of the aluminim and PVC profiles.
2). Vertical and horizontal direction can be adjusted comtinously.
3). Changeable template for different copy routing.

Technical Parameters

Brand Name	Mingmei
Model	LXF2-290*100
Power Supply	380V 50Hz(or customized)
Input Power	2*0.75KW
Over all dimension	100011501600mm
Weight	280Kg
Air Pressure	0.6-0.8MPa
Processing hole size error	±0.2mm
Processing deviation from straightness	±0.1mm
Milling cutter diameter	Φ5, Φ8
Copy routing range	290*100mm
Roughness of cutting surface	Ra 12.5 µm
