equipment feature:

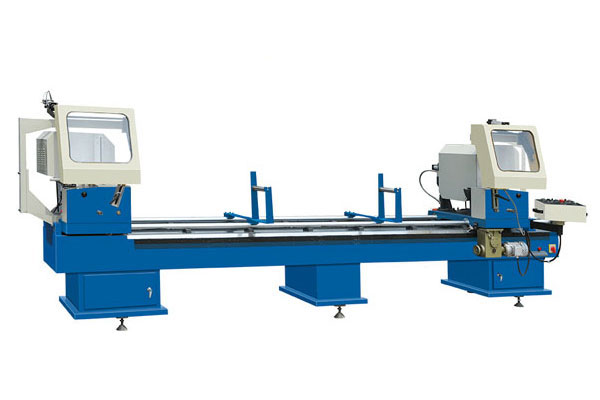

1.the machien is used for cuuting of aluminum profiule.

2.imported carbides blade is of accurate processing and high endurance.

3.the two head can work alone, can slao work at the same time.

4.to cut a setcion of desired length and two end angle.

5.roght head adopts motor drive.

6.two head can be manually switching angle,realize -45 degree,90 degree,45 degree angle cuuting profile.

technical parameter:

input power： 3.55kw

power supply：380v/50hz

air pressure：0.6-0.8mpa

motor rotary speed：2800r/min

blade specification：Ø450xØ30

cutting angle：-45,45o-90o

cutting length：680-3700mm

cutting width and height：120x160mm

overall dimension：4600x1300x1550mm

weight：806kg
