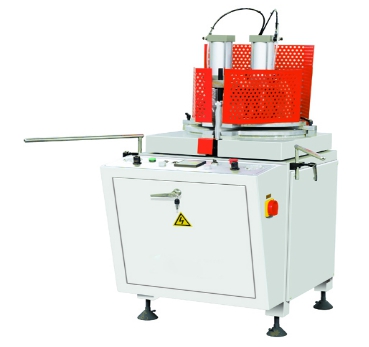

1.Main features
1). Specially for 30-180 degree angle welding.
2). PLC controlled machinery working.
3). Two separate clamping device control for easy operation.
2.Technical Parameters
Brand Name Mingmei
Model: SHD01-120
Power voltage: 220V  50HZ
Input power: 1.2KW
Air pressure: 0.5~0.8MPa
Air consumption: 50L/min
Welding profile height: 20mm~120mm
Welding profile width: 120mm
Welding angle range: 30°~180°
Overall dimension: 960*900*1460mm
Weight: 260kg
