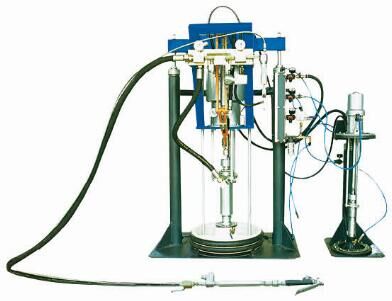

ST02 Two-component Silicone Extruder Machine
ST02

ST02

Product description

Features:

1-This extruder is the special machine for spreading double-component sealant.
2-It is full pneumatic type and do not need electric supply, can be easy to move and operation in

the building site.
3-Easy operation, easy maintenance, stable working, high efficiency, It can suit the request of

 insulating glass and glass curtain wall batch production.

4-the main parts is from South Korea. Brand name : HASCO.

5-The curative agent hydraulic pressure system have two sets of filtration devices, advance the

uniformity and curative capability.

6-the valve ports of the basic material pump, the curative agent pump and proportioning pump

all adopt the special alloy with zero leakage.

7-the rubber mixing system adopt the strip shaker with international static state to -and-fro technology, and the imported mix mandril.

Technical parameters:

Brand

Mingmei

Model

ST02

Mixing Ratio

6:1——14 :1

Basic Component Bucket

55 Gallon(200L)

Hardener Bucket

5 Gallon(20L)

Max Air Consumption

0.8m3/min

Sealant Air Pressure Rate

50:1

Max Squeezing Pressure

29Mpa

Air Pressure

 0.5——0.8Mpa

Outside Dimension

1100*950*1630mm

Weight

650kg



Prev Sealant Extruder:JT05 JT05 Butyl Coating Machine
