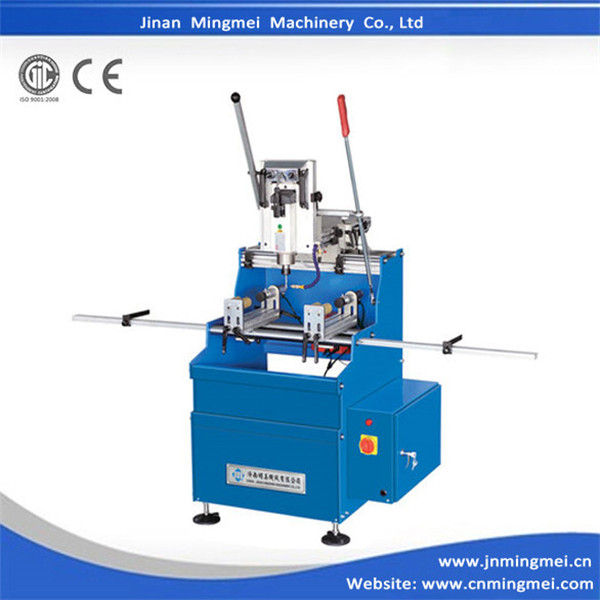

Heavy duty Single Spindle Copy Router

ZLXF-370*125

Description

Main features
·It is used for several of holes, grooves and water-slots on aluminum window & doors or curtain walls.

·It has the features of compact structure, nice design.

·The air pressure drives large horizontal shift range, the clamping of the profile.

·The easy copy-routing plate replacement.

·Large useful scope, high efficiency and convenient operation achieve the continuous processing

and safe operation.

Technical Parameters

Brand	Mingmei
Model	ZLXF-370*125
Input Voltage	380V 50Hz
Input Power	3.0KW
Motor Rotary Speed	0-18000r/min
Air pressure	0.5~0.8Mpa
Milling cutter diameter	Φ5 Φ8
Copy router range	370*125mm
Profile section(Width x height)	230*150mm
Overall Dimension	9008801700mm
Weight	300kg
