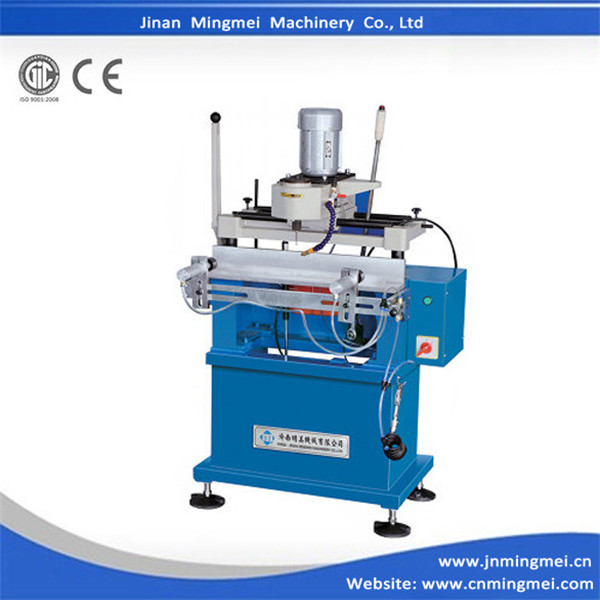

Single-head Copy-routing Drilling Machine

LXF-290*100

Description

Used for processing all kinds of holes of the aluminim and pvc profiles.
High-precision copy routing, easy operation, two hand operation.
Changeable template for different copy routing.

It has features of compact structure and small volume, the air pressure drives the clamping.

2.Technical Parameters

Brand Name	Mingmei
Model	LXF-290*100
Power Supply	380V 50Hz
Input Power	0.75KW
Air Pressure	0.6-0.8MPa
Processing hole size error	±0.2mm
Processing deviation from straightness	±0.1mm
Milling cutter diameter	Φ5, Φ8
Copy routing range	290*100mm
Roughness of cutting surface	Ra 12.5 µm
Over all dimension	100011301600mm
Weight	230Kg
